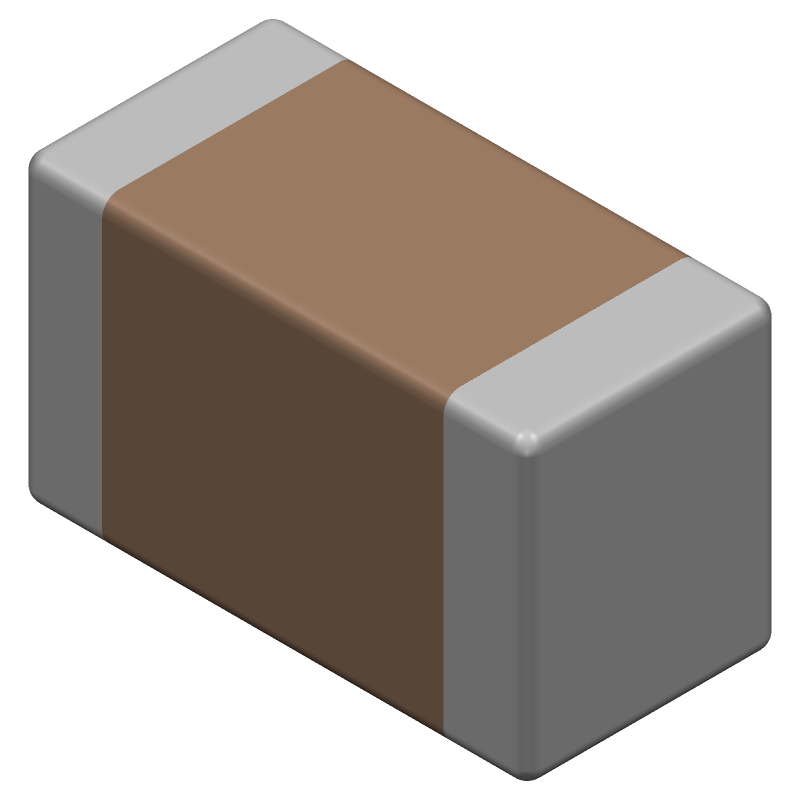

0603DC105KAT2A datasheet by Kyocera AVX Components

0603DC105KAT2A Frequently Asked Questions (FAQs)

• What is the recommended soldering temperature profile for this capacitor?
  The recommended soldering temperature profile for the 0603DC105KAT2A is a peak temperature of 240°C to 245°C, with a dwell time of 1-2 seconds. It's essential to follow the IPC J-STD-020 standard for reflow soldering.
• How does the capacitor's ESR (Equivalent Series Resistance) affect its performance?
  The ESR of the 0603DC105KAT2A is 0.1 ohms, which is relatively low. This means the capacitor has minimal internal resistance, resulting in less energy loss and improved overall performance.
• What is the capacitor's moisture sensitivity level (MSL) rating?
  The 0603DC105KAT2A has an MSL rating of 1, which means it can withstand exposure to moisture without significant degradation. However, it's still essential to follow proper handling and storage procedures to prevent moisture absorption.
• Can I use this capacitor in high-frequency applications?
  Yes, the 0603DC105KAT2A is suitable for high-frequency applications due to its low ESR and ESL (Equivalent Series Inductance). However, it's essential to consider the capacitor's self-resonant frequency (SRF) and ensure it doesn't coincide with the operating frequency of your circuit.
• What is the capacitor's tolerance to voltage derating?
  The 0603DC105KAT2A has a voltage derating of 80% of the rated voltage at 125°C. This means that if the capacitor is rated for 10V, it can safely operate at 8V at 125°C without compromising its reliability.
