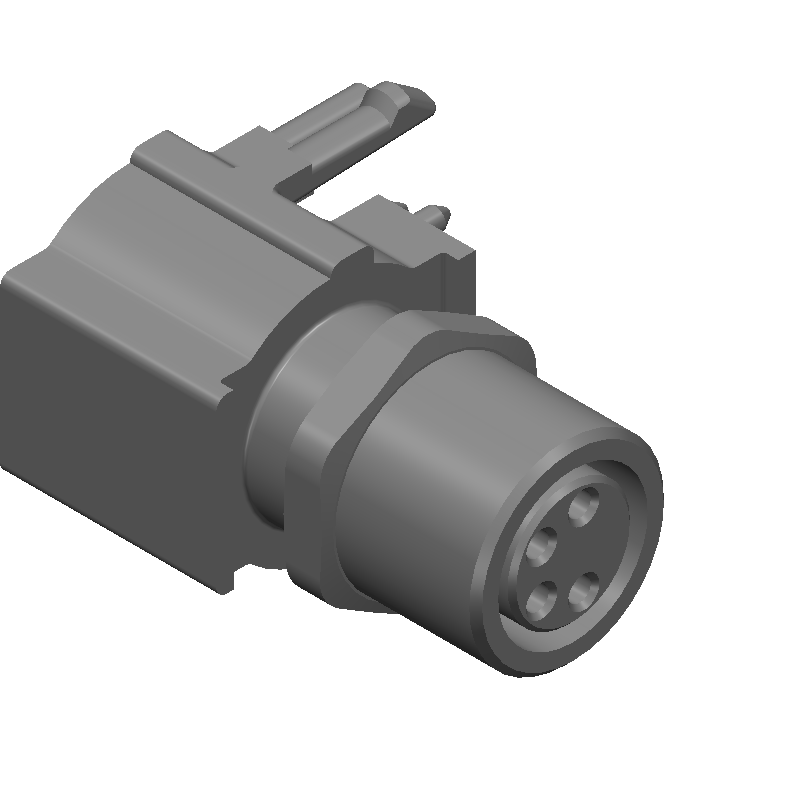

1526169 datasheet by Phoenix Contact

1526169 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector to the PCB?
  The recommended torque is 0.5 Nm to 1.5 Nm, depending on the specific application and PCB material.
• Can I use this connector in a high-vibration environment?
  Yes, the 1526169 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6. However, it's recommended to perform additional testing for your specific application.
• Is the connector suitable for use in harsh environments, such as high temperatures or humidity?
  The 1526169 connector is rated for operating temperatures from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult the datasheet and perform additional testing for extreme environmental conditions.
• Can I use this connector with a different wire gauge than recommended?
  While it's technically possible, using a different wire gauge than recommended may affect the connector's performance and reliability. It's recommended to stick to the recommended wire gauge range of 0.5 mm² to 1.5 mm².
• How do I ensure proper mating and unmating of the connector?
  To ensure proper mating and unmating, make sure to follow the recommended mating and unmating forces, and use the correct tools and procedures to avoid damaging the connector or PCB.
