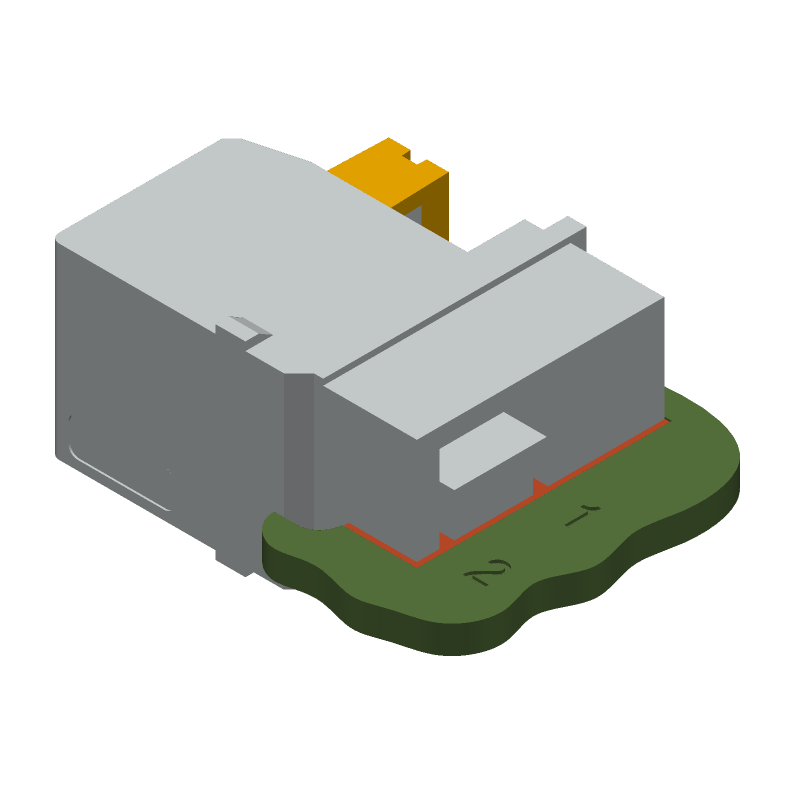

2200315 datasheet by Phoenix Contact

2200315 Frequently Asked Questions (FAQs)

• What is the recommended torque for screwing the connector onto a panel?
  The recommended torque is 0.6 Nm to 1.2 Nm, as specified in the Phoenix Contact's general technical guidelines.
• Can I use this connector in a high-vibration environment?
  Yes, the 2200315 connector is designed to withstand vibrations up to 10 g according to IEC 60068-2-6, making it suitable for use in high-vibration environments.
• Is the connector suitable for outdoor use or exposure to harsh environmental conditions?
  The 2200315 connector has a protection rating of IP67, which means it is protected against dust and temporary immersion in water up to 1 meter. However, it's recommended to use additional protection measures for outdoor use or exposure to harsh environmental conditions.
• Can I use this connector with a different wire gauge than specified in the datasheet?
  While the datasheet specifies a recommended wire gauge, it's possible to use a different gauge. However, it's essential to ensure that the wire gauge meets the connector's minimum and maximum wire size specifications to ensure reliable connections.
• How do I ensure proper mating and unmating of the connector?
  To ensure proper mating and unmating, follow the recommended mating and unmating forces specified in the datasheet, and ensure that the connector is properly aligned and seated.
