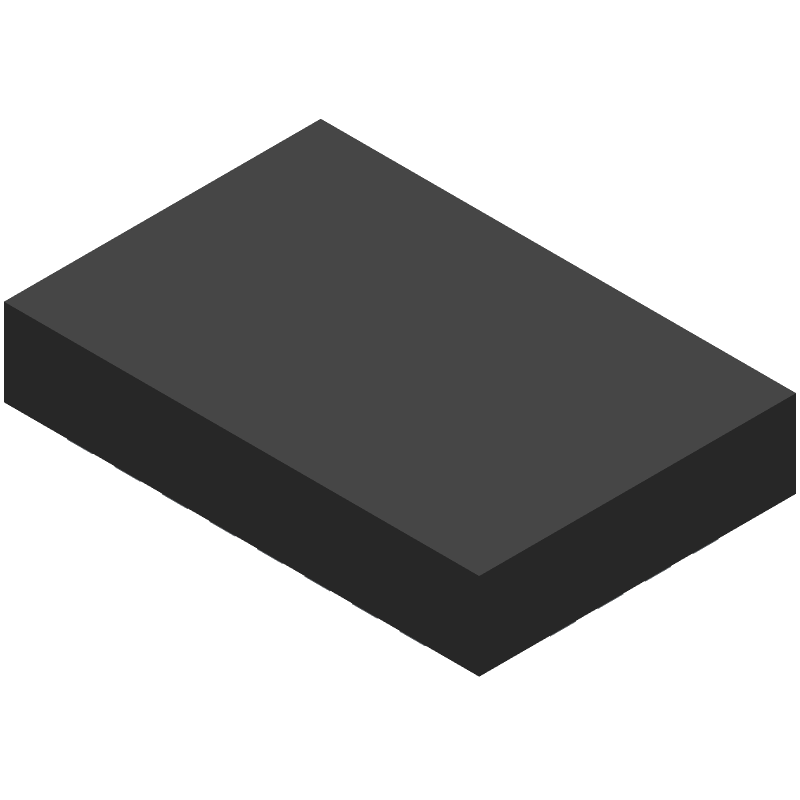

2611011024000 datasheet by Wurth Elektronik

2611011024000 Frequently Asked Questions (FAQs)

• What is the recommended PCB footprint for the 2611011024000?
  The recommended PCB footprint for the 2611011024000 can be found in the Wurth Elektronik's application note 'Layout Recommendations for WE-LQS SMT Inductors'. It provides detailed information on pad layout, spacing, and thermal considerations.
• How do I ensure the inductor's magnetic field does not interfere with nearby components?
  To minimize magnetic field interference, ensure a minimum distance of 5mm between the inductor and nearby components. Additionally, consider using shielding materials or orienting the inductor to minimize field strength in sensitive areas.
• What is the maximum operating temperature range for the 2611011024000?
  The 2611011024000 is rated for operation from -40°C to +125°C. However, derating may be necessary for high-temperature applications. Consult the datasheet for specific derating guidelines.
• Can I use the 2611011024000 in a high-vibration environment?
  Yes, the 2611011024000 is designed to withstand vibrations up to 10g (IEC 60068-2-6). However, it's essential to ensure proper PCB mounting and secure the component to prevent mechanical stress.
• How do I handle the 2611011024000's EMI susceptibility?
  To minimize EMI susceptibility, ensure proper PCB layout, use a ground plane, and consider adding EMI shielding or filtering components. Additionally, follow Wurth Elektronik's application notes for EMI mitigation strategies.
