The recommended PCB footprint for the 744230251 can be found in the Wurth Elektronik's PCB Library or in the component's 3D model. It's essential to follow the recommended footprint to ensure proper assembly and thermal management.
To ensure the 744230251 operates within its specified temperature range, it's crucial to provide adequate heat dissipation. This can be achieved by using a heat sink, thermal interface material, and ensuring good airflow around the component.
The maximum allowed voltage derating for the 744230251 depends on the specific application and environmental conditions. As a general rule, it's recommended to derate the voltage by 10-20% to ensure reliable operation and prevent premature failure.
The 744230251 is designed to withstand moderate vibrations, but it's essential to ensure the component is properly secured to the PCB and the PCB is adequately mounted to the system. Additional mechanical support or potting may be necessary in high-vibration environments.
To prevent damage during assembly, handle the 744230251 by the body or the recommended handling areas. Avoid touching the component's leads or electrical contacts to prevent electrostatic discharge (ESD) damage.

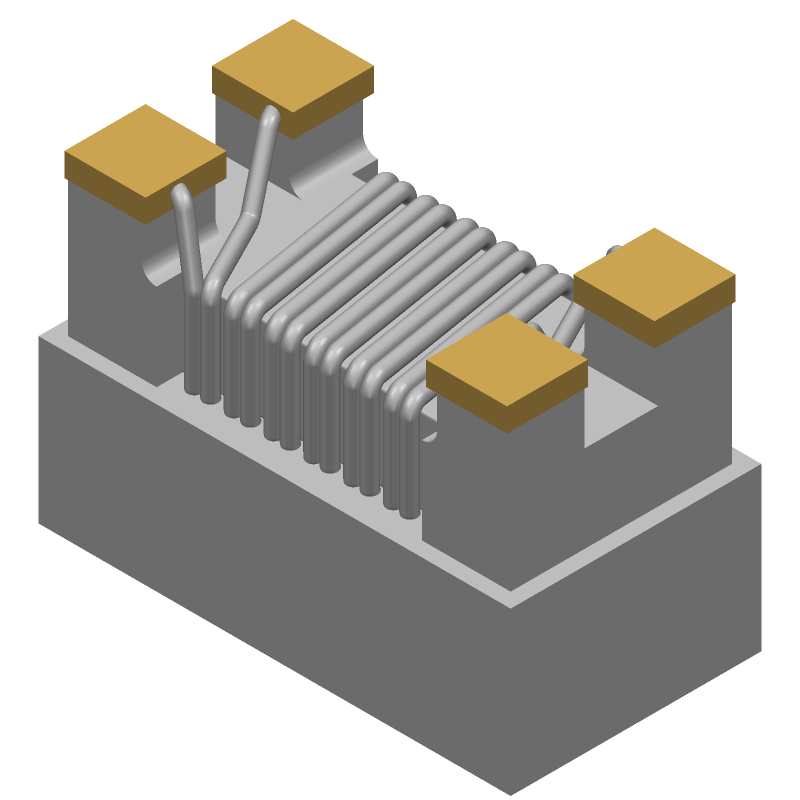

744230251 datasheet
by Wurth Elektronik
