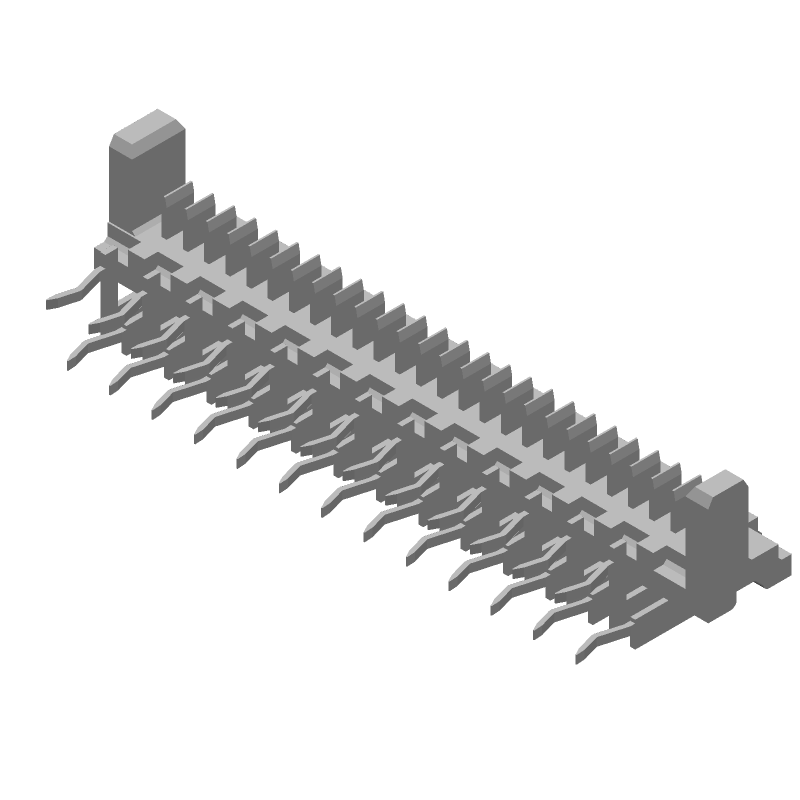

90800-0026 datasheet by Molex

90800-0026 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw terminals?
  The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs).
• Can I use this connector in a high-vibration environment?
  Yes, the 90800-0026 connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration environments.
• Is this connector suitable for outdoor use?
  The 90800-0026 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1m (3.3 ft) for 30 minutes. However, it's recommended to use additional sealing or protection for extended outdoor use.
• What is the maximum operating temperature range for this connector?
  The 90800-0026 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F).
• Can I use this connector with a wire gauge larger than 24 AWG?
  No, the 90800-0026 connector is designed for use with wire gauges 24 AWG to 30 AWG. Using a larger wire gauge may not provide a secure connection and may damage the connector.
