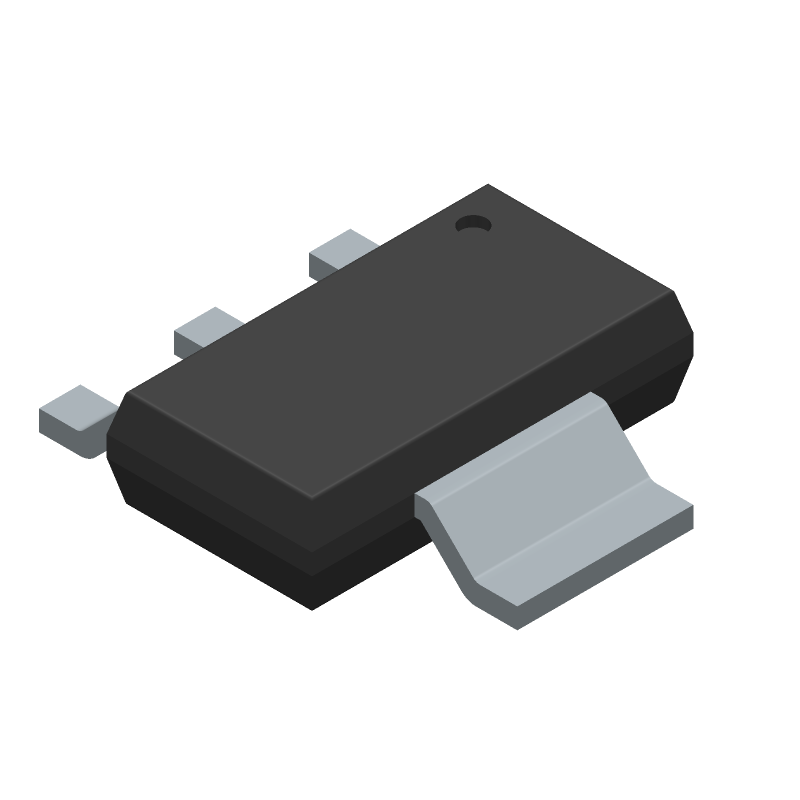

AZ1117CH-3.3TRG1 datasheet by Diodes Incorporated

AZ1117CH-3.3TRG1 Frequently Asked Questions (FAQs)

• What is the maximum input voltage that can be applied to the AZ1117CH-3.3TRG1?
  The maximum input voltage that can be applied to the AZ1117CH-3.3TRG1 is 15V, but it's recommended to keep it below 12V for optimal performance and reliability.
• How do I ensure stability and prevent oscillations in the AZ1117CH-3.3TRG1?
  To ensure stability and prevent oscillations, it's recommended to use a minimum output capacitance of 10uF, and to keep the output capacitor close to the regulator. Additionally, using a low-ESR capacitor can help improve stability.
• What is the dropout voltage of the AZ1117CH-3.3TRG1?
  The dropout voltage of the AZ1117CH-3.3TRG1 is typically around 1.5V, which means that the input voltage should be at least 1.5V higher than the output voltage for proper regulation.
• Can I use the AZ1117CH-3.3TRG1 in a high-temperature environment?
  The AZ1117CH-3.3TRG1 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure good thermal design to prevent overheating.
• How do I calculate the power dissipation of the AZ1117CH-3.3TRG1?
  The power dissipation of the AZ1117CH-3.3TRG1 can be calculated using the formula: Pd = (Vin - Vout) x Iout, where Vin is the input voltage, Vout is the output voltage, and Iout is the output current.
