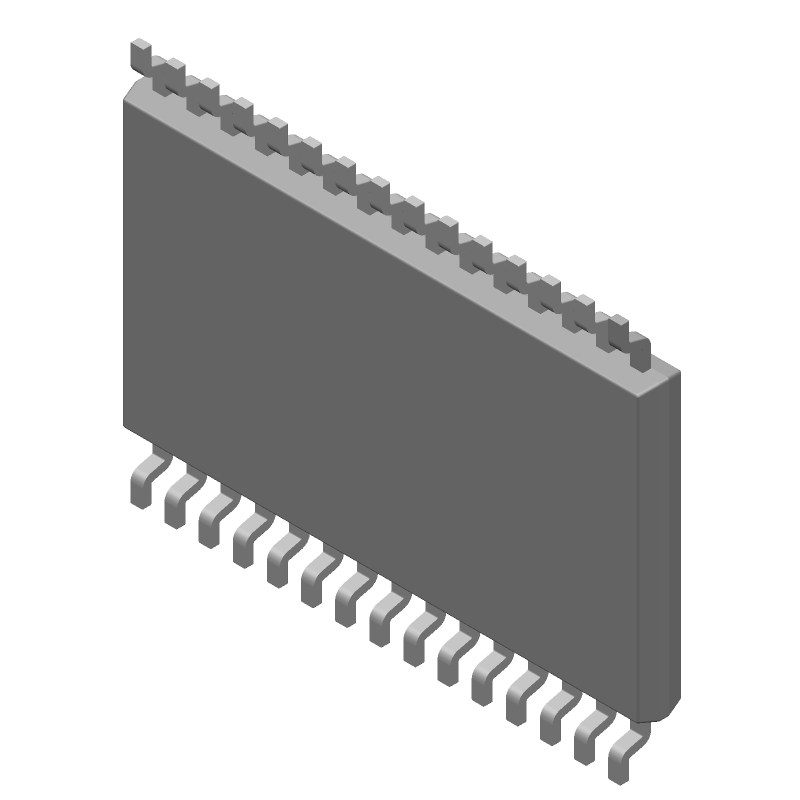

BD81A76EFV-ME2 datasheet by ROHM Semiconductor

BD81A76EFV-ME2 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended, and the thermal pad should be connected to a ground plane or a dedicated heat sink.
• How do I ensure stable operation with a high-ESR output capacitor?
  To ensure stable operation with a high-ESR output capacitor, ROHM recommends adding a 1-10nF ceramic capacitor in parallel with the output capacitor to reduce the overall ESR. Additionally, the output capacitor should be placed close to the IC to minimize parasitic inductance.
• What is the maximum allowed voltage on the EN pin?
  The maximum allowed voltage on the EN pin is 6V, which is higher than the recommended operating voltage of 5V. However, it's essential to ensure that the EN pin voltage does not exceed the supply voltage (VIN) to prevent damage to the IC.
• Can I use the BD81A76EFV-ME2 in a high-temperature environment?
  While the BD81A76EFV-ME2 is rated for operation up to 105°C, ROHM recommends derating the output current and power dissipation to ensure reliable operation in high-temperature environments. Consult the datasheet and ROHM's application notes for specific guidelines.
• How do I troubleshoot oscillations or instability issues with the BD81A76EFV-ME2?
  To troubleshoot oscillations or instability issues, check the PCB layout for parasitic inductance and capacitance, ensure proper decoupling of the input and output capacitors, and verify that the output capacitor is within the recommended range. Also, check for voltage drops on the input and output lines, and ensure that the EN pin is properly biased.
