The recommended land pattern for the BZT52C33S-TP can be found in the Micro Commercial Components' packaging information document or in the IPC-7351 standard. It is essential to follow the recommended land pattern to ensure reliable soldering and to prevent thermal and mechanical stress on the component.
To prevent damage, handle the BZT52C33S-TP by the body only, avoiding touching the glass diode or the leads. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Avoid bending or flexing the leads, and use a pick-and-place machine or a vacuum pickup tool to handle the component during assembly.
The maximum allowable voltage for the BZT52C33S-TP is 33V, as specified in the datasheet. Exceeding this voltage may cause permanent damage to the component or affect its reliability.
The BZT52C33S-TP is rated for operation up to 150°C. However, the component's reliability and lifespan may be affected by prolonged exposure to high temperatures. It is essential to evaluate the component's performance and reliability in the specific application and environment.
Store the BZT52C33S-TP in its original packaging or in a dry, cool place away from direct sunlight. Avoid exposing the component to moisture, humidity, or extreme temperatures. Follow the storage and handling guidelines provided by Micro Commercial Components to maintain the component's shelf life.

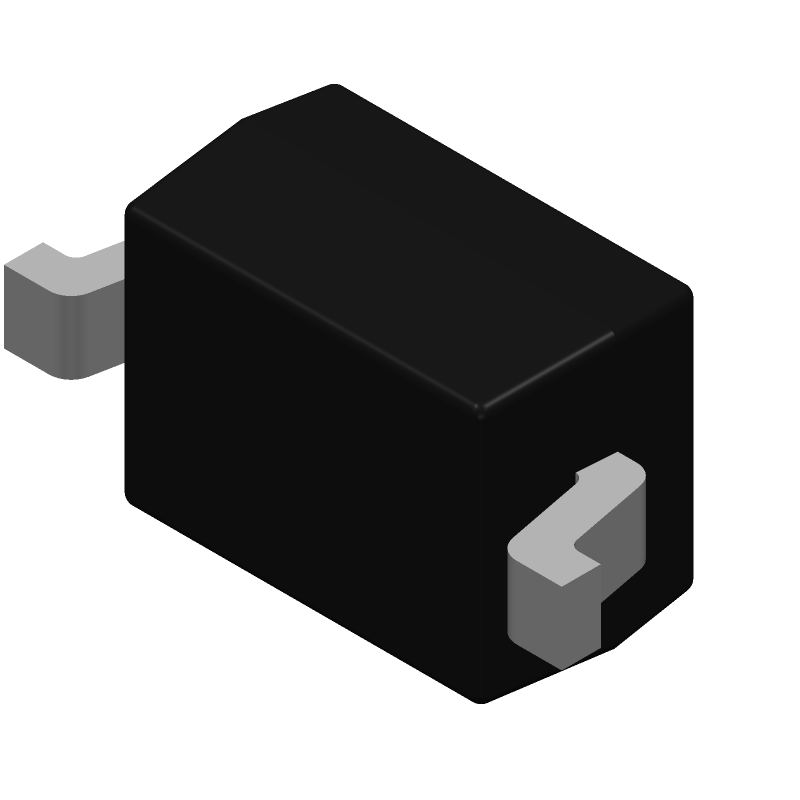

BZT52C33S-TP datasheet
by Micro Commercial Components
