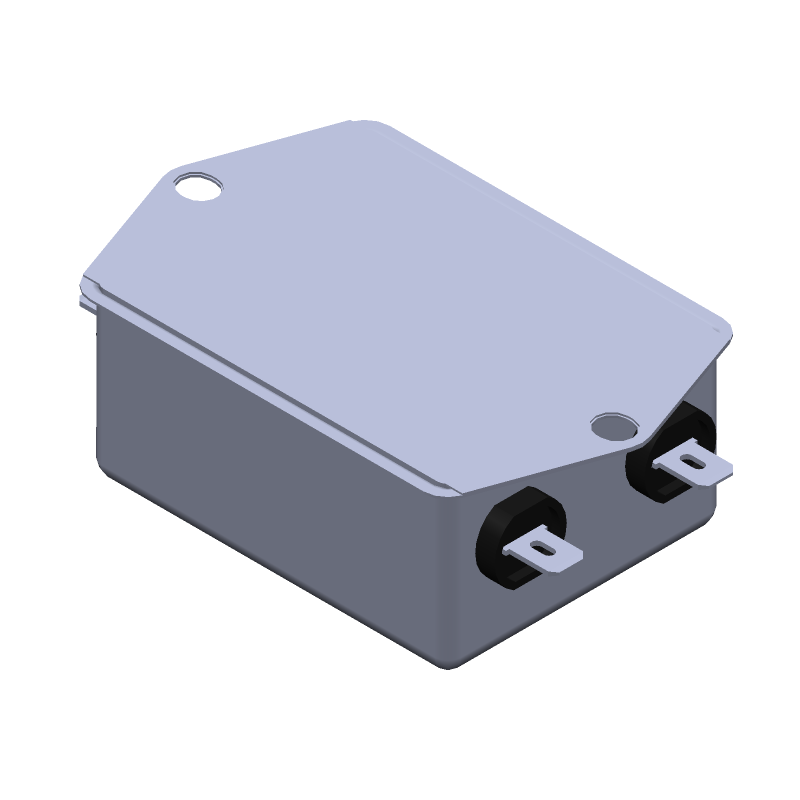

FN2030-8-06 datasheet by Schaffner

FN2030-8-06 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the FN2030-8-06?
  Schaffner recommends a symmetrical PCB layout with a solid ground plane, and keeping the input and output traces as short as possible to minimize electromagnetic interference (EMI).
• Can the FN2030-8-06 be used in a redundant power supply configuration?
  Yes, the FN2030-8-06 can be used in a redundant power supply configuration, but it's essential to ensure that the common-mode inductance is maintained to prevent noise coupling between the two power supplies.
• How does the FN2030-8-06 handle high-frequency noise and EMI?
  The FN2030-8-06 is designed to attenuate high-frequency noise and EMI through its common-mode choke and X-capacitors, providing a high level of electromagnetic compatibility (EMC).
• Is the FN2030-8-06 suitable for use in high-temperature environments?
  The FN2030-8-06 has a maximum operating temperature of 80°C, but it's recommended to derate the component's performance at higher temperatures to ensure reliability and longevity.
• Can the FN2030-8-06 be used in a DC-DC converter application?
  Yes, the FN2030-8-06 can be used in a DC-DC converter application, but it's essential to ensure that the component's ratings are not exceeded, and that the converter's switching frequency is within the component's specified range.
