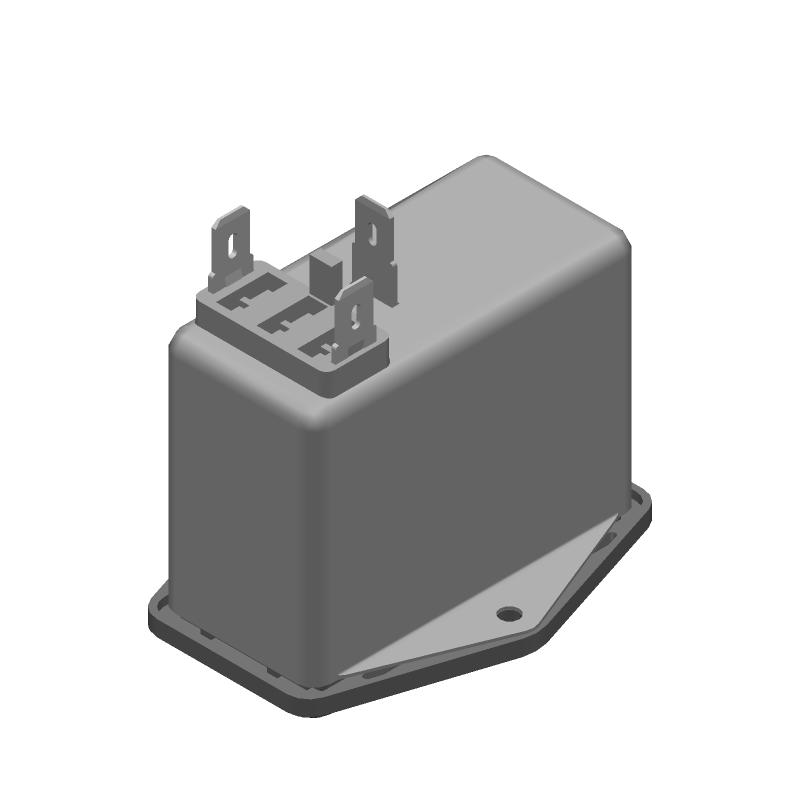

FN283-2-06 datasheet by Schaffner

FN283-2-06 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the FN283-2-06?
  Schaffner recommends a symmetrical layout with the filter's input and output stages separated by a ground plane to minimize electromagnetic interference (EMI).
• How do I ensure proper grounding of the FN283-2-06?
  Connect the filter's ground pin to a solid, low-impedance ground point on the PCB, and ensure that the ground plane is not interrupted by any slots or cutouts.
• What is the maximum operating temperature range for the FN283-2-06?
  The FN283-2-06 is rated for operation from -40°C to +85°C, but derating may be necessary for high-temperature applications.
• Can I use the FN283-2-06 in a redundant or parallel configuration?
  Yes, but ensure that the filters are properly synchronized and that the system is designed to handle the increased power rating and thermal considerations.
• How do I troubleshoot common issues with the FN283-2-06, such as overheating or noise issues?
  Check for proper installation, ensure correct input and output connections, and verify that the filter is not overloaded. Consult Schaffner's application notes and technical support for further assistance.
