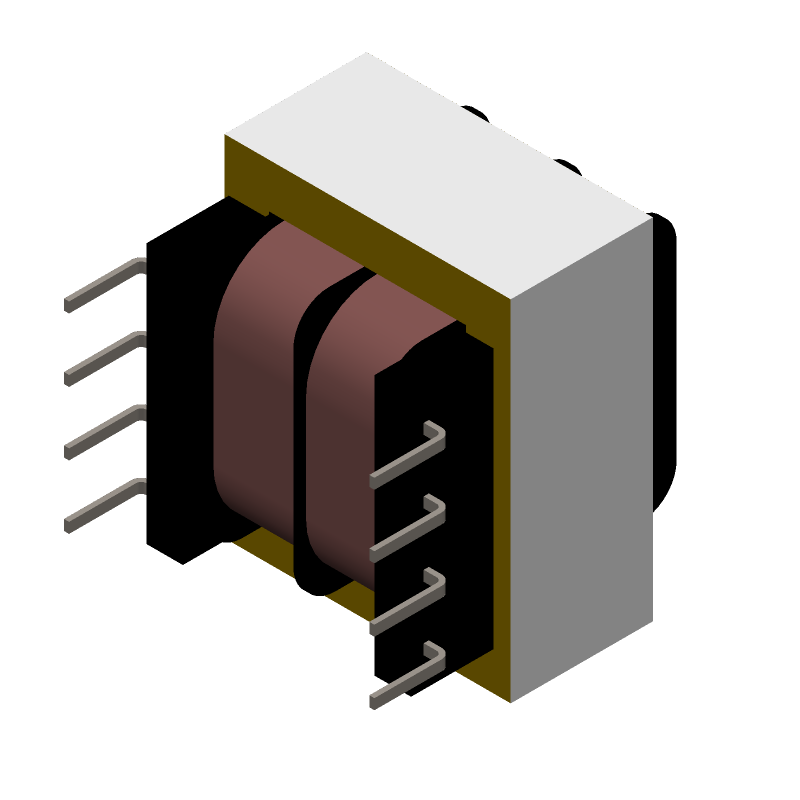

FS16-150-C2 datasheet by Triad Magnetics

FS16-150-C2 Frequently Asked Questions (FAQs)

• What is the recommended operating frequency range for the FS16-150-C2?
  The recommended operating frequency range for the FS16-150-C2 is 50-400 Hz, but it can be used up to 1 kHz with reduced performance.
• Can the FS16-150-C2 be used in a switching power supply application?
  Yes, the FS16-150-C2 is suitable for switching power supply applications, but the designer should ensure that the transformer is properly designed and tested for the specific application.
• What is the maximum ambient temperature rating for the FS16-150-C2?
  The maximum ambient temperature rating for the FS16-150-C2 is 130°C, but derating may be required for high-temperature applications.
• Is the FS16-150-C2 compatible with UL and CE safety standards?
  Yes, the FS16-150-C2 meets the requirements of UL 1561 and CE safety standards, but the final product must still meet the relevant safety standards.
• What is the recommended wire size for the primary and secondary windings?
  The recommended wire size for the primary and secondary windings depends on the specific application, but a minimum of 18 AWG is recommended for the primary and 20 AWG for the secondary.
