A good PCB layout for HCPL-M600-000E involves keeping the input and output circuits separate, using a ground plane, and minimizing track lengths and widths to reduce electromagnetic interference (EMI).
To ensure reliable operation in high-temperature environments, ensure that the device is operated within its specified temperature range (-40°C to 100°C), and consider using a heat sink or thermal management system to prevent overheating.
HCPL-M600-000E has built-in ESD protection, but it's still recommended to follow standard ESD handling procedures when handling the device, such as using an anti-static wrist strap or mat, and storing the device in an anti-static bag.
Yes, HCPL-M600-000E is designed for use in safety-critical applications, such as in industrial control systems, medical devices, and automotive systems. However, it's essential to follow the device's safety guidelines and relevant industry standards.
To troubleshoot issues with HCPL-M600-000E, start by checking the device's input and output voltages, ensuring that they are within the specified ranges. Also, verify that the device is properly powered and that the input signals are within the specified frequency range.

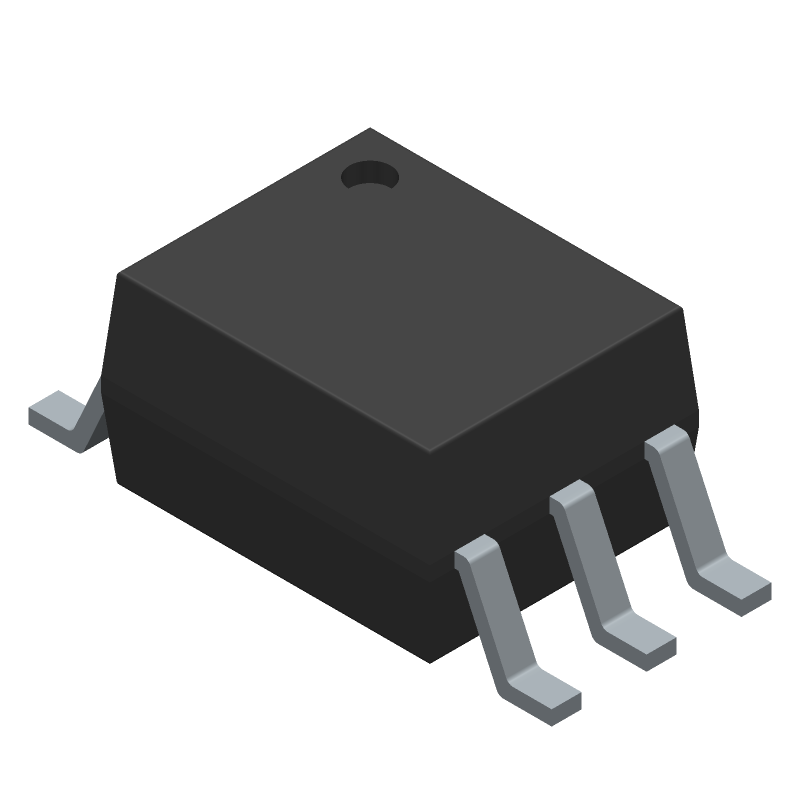

HCPL-M600-000E datasheet
by Avago Technologies
