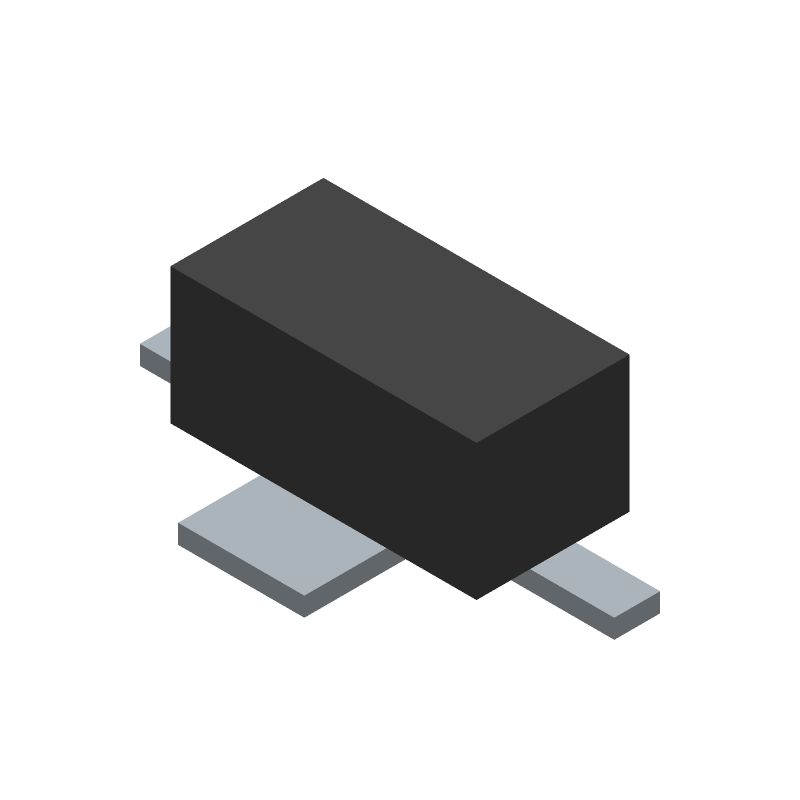

    Part Img LFCW-1142+ datasheet by Mini-Circuits

    • LTCC LOW PASS FILTER, DC - 11400
    • Original
    • Yes
    • Active
    • EAR99
    • Find it at Findchips.com

    LFCW-1142+ datasheet preview

    LFCW-1142+ Frequently Asked Questions (FAQs)

    • A good PCB layout and grounding scheme is crucial for optimal performance. Mini-Circuits recommends a 4-layer PCB with a solid ground plane, and a via-stitched ground plane under the component. The component should be placed on a solid copper area, and the input and output tracks should be kept as short as possible.
    • Impedance matching is critical for optimal performance. Mini-Circuits recommends using a pi-network or a T-network to match the 50 ohm input/output impedance of the LFCW-1142+ to your system's impedance. You can use a network analyzer to measure the impedance and adjust the matching network accordingly.
    • The maximum power handling of the LFCW-1142+ is 1W. Exceeding this power limit can cause damage to the component. It's essential to ensure that the input power is within the specified limit to maintain the component's reliability and performance.
    • To reduce the noise figure of the LFCW-1142+, ensure that the input signal is strong and clean, and the component is operated within its specified frequency range. Additionally, using a low-noise amplifier or a pre-amplifier before the LFCW-1142+ can help reduce the noise figure.
    • The operating temperature range of the LFCW-1142+ is -40°C to +85°C. Operating the component outside this range can affect its performance and reliability.
