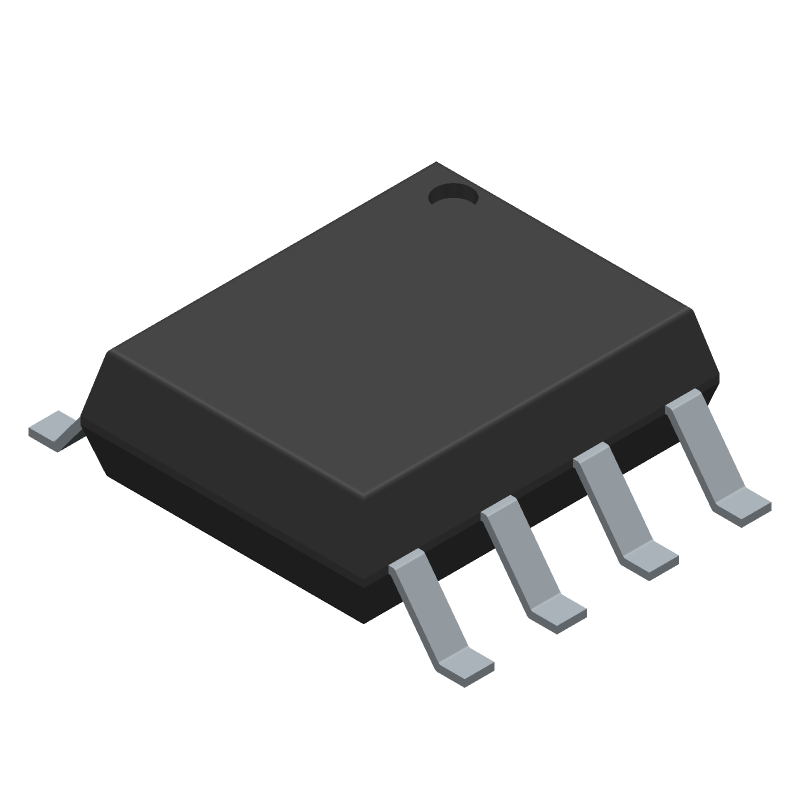

LNK3296G-TL datasheet by Power Integrations

LNK3296G-TL Frequently Asked Questions (FAQs)

• What is the maximum output power that can be achieved with LNK3296G-TL?
  The maximum output power of LNK3296G-TL depends on the input voltage, output voltage, and other design parameters. However, Power Integrations recommends a maximum output power of 65W for this device.
• How do I ensure reliable start-up of the LNK3296G-TL?
  To ensure reliable start-up, make sure the input voltage is within the recommended range, and the output voltage is properly set. Also, ensure that the input capacitor is properly sized and placed close to the device. Additionally, a soft-start circuit can be implemented to reduce inrush current during start-up.
• What is the recommended layout and placement for the LNK3296G-TL?
  For optimal performance, place the LNK3296G-TL close to the input capacitors and ensure a low-impedance path for the high-frequency currents. Keep the layout symmetrical and avoid routing high-frequency signals near sensitive analog signals. Follow the recommended layout guidelines in the datasheet and application notes.
• How do I optimize the design for EMI and EMC compliance?
  To optimize the design for EMI and EMC compliance, use a shielded transformer, keep the layout compact, and use a common-mode choke. Ensure proper grounding and shielding of the PCB, and use EMI filters or ferrite beads on the input and output lines. Follow the guidelines in the datasheet and application notes for EMI and EMC compliance.
• What are the thermal considerations for the LNK3296G-TL?
  The LNK3296G-TL has a maximum junction temperature of 150°C. Ensure good thermal conduction by using a thermal pad or heat sink, and keep the device away from other heat sources. Monitor the device temperature and adjust the design accordingly to prevent overheating.
