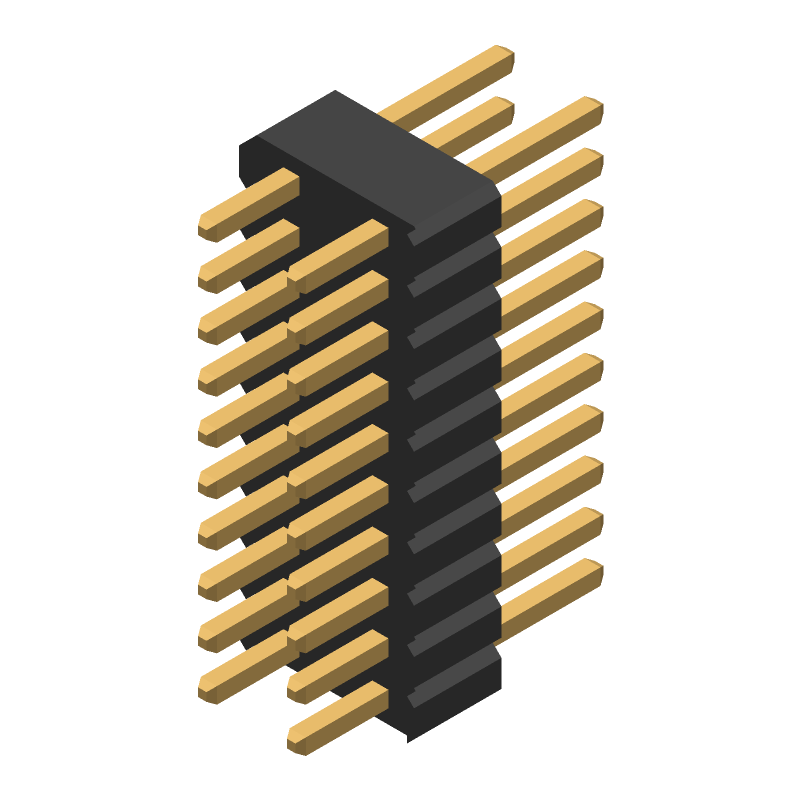

1.27mm x 2.54mm Pitch DIL Vertical PC Tail Pin Header, 4mm mating height, 2.3mm tail, gold, 10+10-way - see also individual drawing <a href="http://www.harwin.com/include/downloads/drawings/M52-040023W1045.PDF" title="Link to a PDF file, 88Kb">M52-040023W1045</a> (PDF, 88Kb)
The recommended torque for the screw threads is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
Yes, the M52-040023W1045 is designed to withstand high-vibration environments, but it's recommended to consult with Harwin's technical support for specific application guidance.
The operating temperature range for the M52-040023W1045 is -40°C to 125°C, but derating may be required for high-temperature applications.
The M52-040023W1045 has a sealed construction and is suitable for use in harsh environments, but it's recommended to consult with Harwin's technical support for specific application guidance.
It's not recommended to use the M52-040023W1045 with a mating connector from another manufacturer, as compatibility and performance cannot be guaranteed.
M52-040023W1045 datasheet
by Harwin
