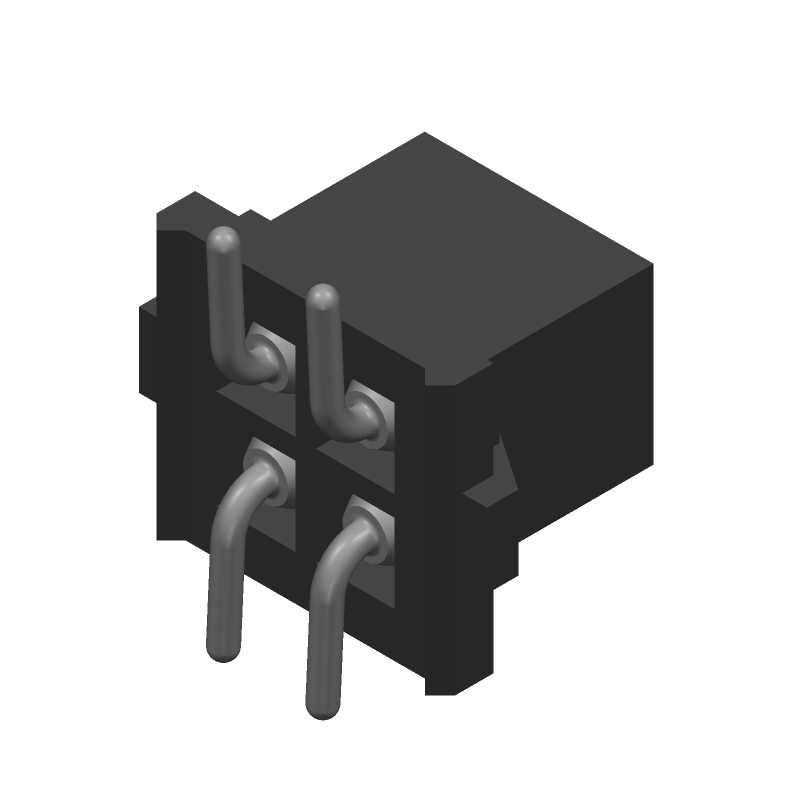

M80-6810442 datasheet by Harwin

M80-6810442 Frequently Asked Questions (FAQs)

• What is the recommended torque for the screw threads on the M80-6810442?
  The recommended torque for the screw threads on the M80-6810442 is 0.5 Nm to 1.5 Nm, depending on the application and environmental conditions.
• Can the M80-6810442 be used in high-vibration applications?
  Yes, the M80-6810442 is designed to withstand high-vibration environments, with a vibration resistance of up to 10g (IEC 61373 Cat 2). However, it's essential to ensure proper mounting and screw torque to maintain reliability.
• Is the M80-6810442 compatible with harsh environments, such as high temperatures or humidity?
  The M80-6810442 is designed to operate in a wide range of temperatures (-40°C to +125°C) and humidity levels (up to 95% RH). However, it's crucial to follow the recommended storage and operating conditions to ensure optimal performance and reliability.
• Can the M80-6810442 be used in applications that require high-speed data transmission?
  Yes, the M80-6810442 is designed for high-speed data transmission, with a bandwidth of up to 10 Gbps. However, it's essential to ensure proper signal integrity and impedance matching to maintain signal quality.
• Are there any specific PCB layout considerations for the M80-6810442?
  Yes, it's recommended to follow Harwin's PCB layout guidelines for the M80-6810442, including maintaining a minimum clearance of 1.5 mm around the connector, using a ground plane, and ensuring proper signal routing and impedance matching.
