Diodes Incorporated provides a recommended PCB layout in their application note AN-214, which includes guidelines for signal routing, power supply decoupling, and thermal management to ensure optimal performance and minimize signal integrity issues.
The PI7C9X2G304SLBFDE has a thermal pad on the bottom of the package, which should be connected to a solid ground plane on the PCB to dissipate heat. Additionally, the device has a maximum junction temperature of 125°C, so ensure that the PCB design and system operating conditions do not exceed this temperature.
The recommended power-up sequence for the PI7C9X2G304SLBFDE is to power up the VCCIO and VCC cores simultaneously, followed by the input signals. This ensures that the device is properly initialized and configured before receiving input signals.
To troubleshoot signal integrity issues, use a high-speed oscilloscope to measure the signal waveforms at the input and output pins of the device. Check for signal ringing, overshoot, and undershoot, and ensure that the signal amplitude and frequency are within the specified limits. Also, verify that the PCB layout and routing meet the recommended guidelines.
The PI7C9X2G304SLBFDE has a maximum operating frequency of 350 MHz, but this can vary depending on the specific application and system design. It's recommended to consult the datasheet and application notes for more information on frequency planning and signal integrity.

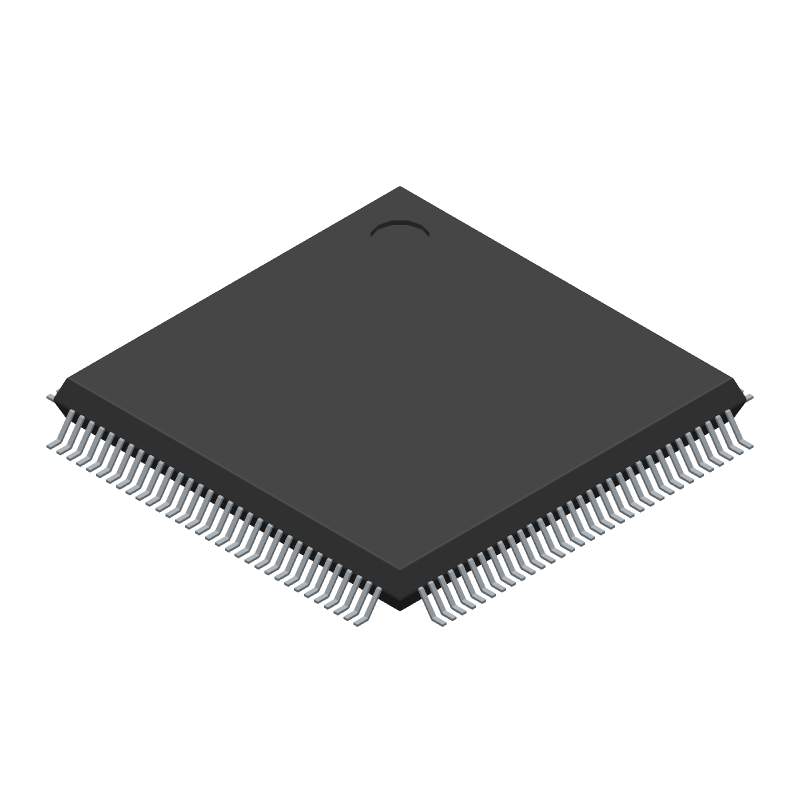

PI7C9X2G304SLBFDE datasheet
by Diodes Incorporated
