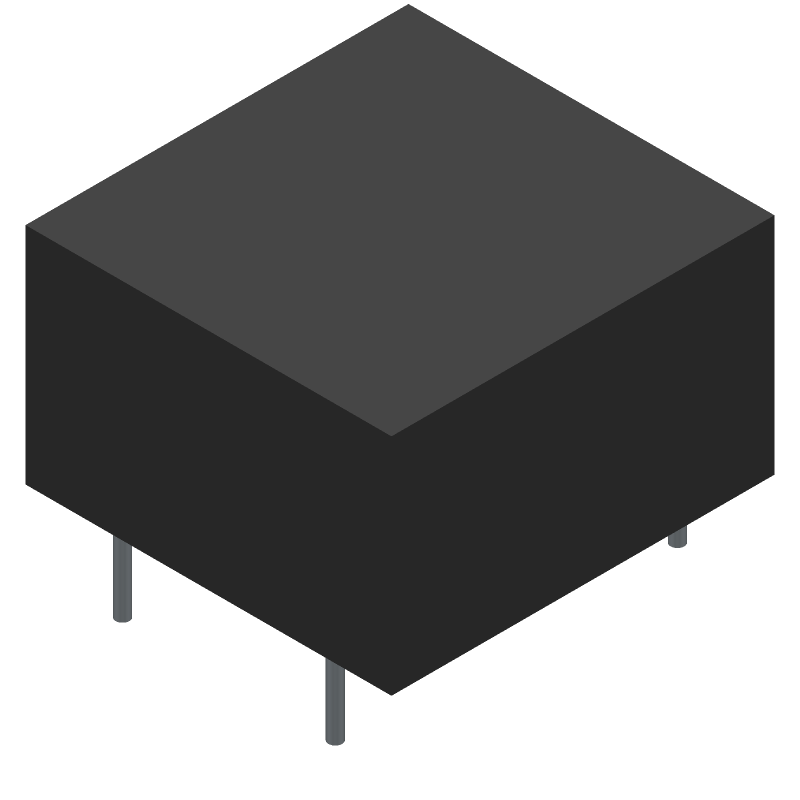

RN114-1.2-02 datasheet by Schaffner

RN114-1.2-02 Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the RN114-1.2-02?
  Schaffner recommends a symmetrical layout with the filter's input and output stages separated by a ground plane to minimize electromagnetic interference (EMI).
• Can the RN114-1.2-02 be used in high-temperature environments?
  While the RN114-1.2-02 is rated for operation up to 85°C, it's recommended to derate the current handling capacity by 1.5% per degree above 70°C to ensure reliable operation.
• How do I ensure the RN114-1.2-02 meets the required safety certifications for my application?
  The RN114-1.2-02 meets various safety certifications, including UL, cUL, and ENEC. Ensure your application meets the required safety standards by consulting the relevant certification bodies and Schaffner's documentation.
• What is the recommended storage and handling procedure for the RN114-1.2-02 to prevent damage?
  Store the RN114-1.2-02 in its original packaging, away from direct sunlight, moisture, and extreme temperatures. Handle the component by the body, avoiding touching the pins or components to prevent electrostatic discharge (ESD) damage.
• Can the RN114-1.2-02 be used in applications with high surge currents?
  While the RN114-1.2-02 is designed to handle surge currents, it's essential to consider the application's specific surge requirements and ensure the filter is properly sized to handle the expected surge currents.
