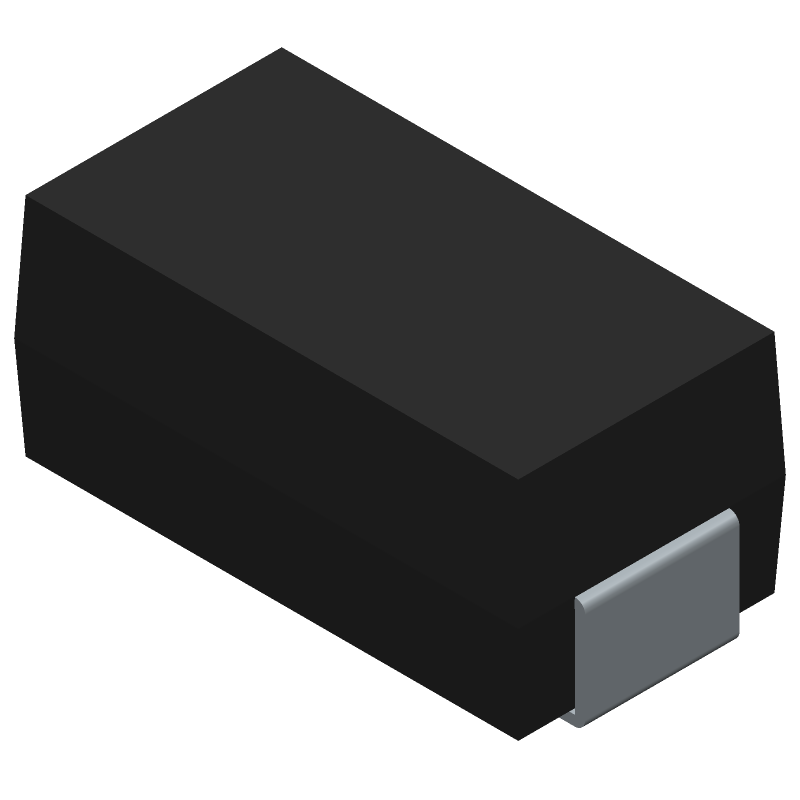

S1B-13-F datasheet by Diodes Incorporated

S1B-13-F Frequently Asked Questions (FAQs)

• What is the recommended PCB footprint for the S1B-13-F?
  The recommended PCB footprint for the S1B-13-F is a standard SOD-123 package footprint with a minimum pad size of 0.8mm x 0.8mm and a thermal pad size of 1.5mm x 1.5mm.
• How do I ensure the S1B-13-F is properly soldered?
  To ensure proper soldering, use a soldering iron with a temperature of 250°C to 260°C, and apply a small amount of solder paste to the pads. Use a soldering technique that minimizes the risk of overheating the component.
• What is the maximum operating temperature range for the S1B-13-F?
  The maximum operating temperature range for the S1B-13-F is -55°C to 150°C, but it's recommended to operate within -40°C to 125°C for optimal performance and reliability.
• Can I use the S1B-13-F in a high-reliability application?
  Yes, the S1B-13-F is suitable for high-reliability applications due to its robust design and manufacturing process. However, it's essential to follow proper design and assembly guidelines to ensure the component's reliability.
• How do I handle the S1B-13-F during storage and shipping?
  Store the S1B-13-F in its original packaging or an equivalent ESD-protective package, and avoid exposing it to moisture, extreme temperatures, or physical stress during shipping and storage.
