The recommended PCB footprint for the SBR0220T5-7 is a standard SOD-523 package footprint with a pad size of 0.8mm x 0.8mm and a pitch of 0.5mm.
To ensure reliability in high-temperature applications, it is recommended to follow the recommended operating conditions, use a suitable thermal design, and consider derating the device's current rating according to the temperature derating curve provided in the datasheet.
Yes, the SBR0220T5-7 can be used in switching regulator applications due to its fast switching speed and low voltage drop. However, it is essential to ensure that the device is operated within its recommended operating conditions and that the circuit is designed to minimize voltage spikes and ringing.
To calculate the power dissipation of the SBR0220T5-7, you need to consider the voltage drop across the device, the current flowing through it, and the operating temperature. You can use the equation Pd = Vf * If, where Pd is the power dissipation, Vf is the voltage drop, and If is the forward current.
Yes, the SBR0220T5-7 is compatible with lead-free soldering processes and is RoHS compliant.

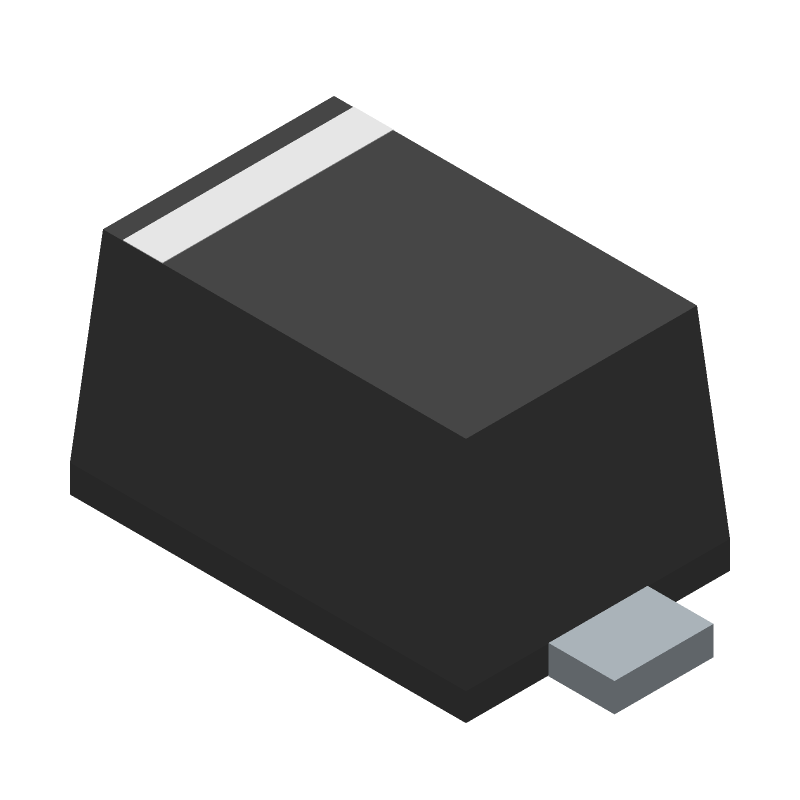

SBR0220T5-7 datasheet
by Diodes Incorporated
