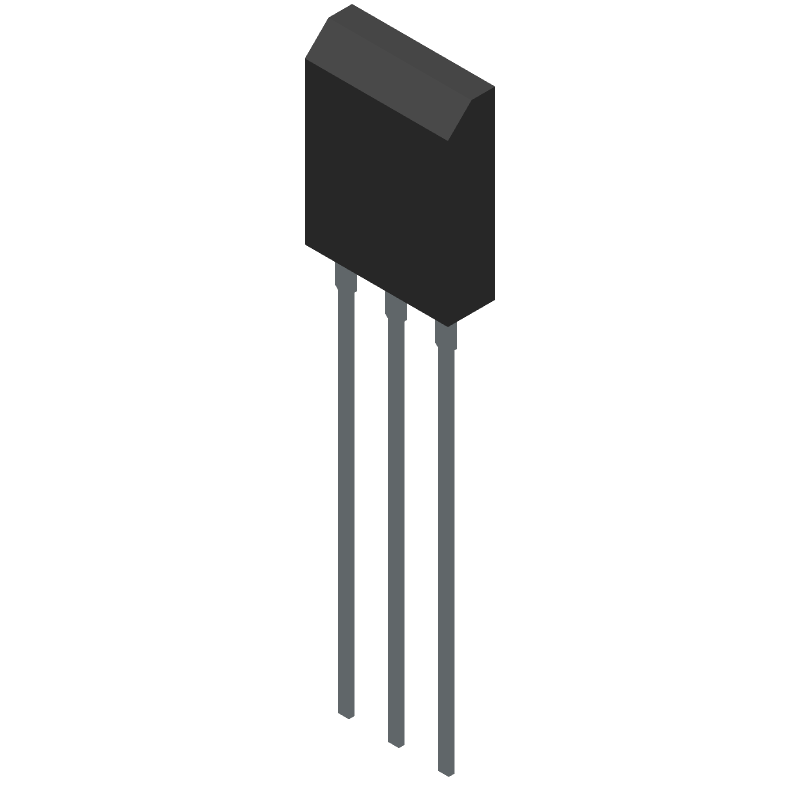

SCT10N120 datasheet by STMicroelectronics

SCT10N120 Frequently Asked Questions (FAQs)

• What is the maximum safe operating area (SOA) for the SCT10N120?
  The maximum safe operating area (SOA) for the SCT10N120 is not explicitly stated in the datasheet. However, STMicroelectronics provides an SOA curve in the application note AN440, which can be used to determine the maximum safe operating area for the device.
• How do I ensure the SCT10N120 is properly thermally managed?
  To ensure proper thermal management, it is recommended to attach a heat sink to the device and ensure good thermal contact. The thermal resistance of the heat sink and the thermal interface material should be minimized. Additionally, the device should be operated within the recommended temperature range to prevent overheating.
• What is the recommended gate drive voltage for the SCT10N120?
  The recommended gate drive voltage for the SCT10N120 is between 10V and 15V. A higher gate drive voltage can improve the device's switching performance, but it may also increase the power consumption and electromagnetic interference (EMI).
• How do I protect the SCT10N120 from electrostatic discharge (ESD)?
  To protect the SCT10N120 from electrostatic discharge (ESD), it is recommended to handle the device in an ESD-protected environment, use ESD-protected packaging and storage, and ensure that all equipment and tools used to handle the device are properly grounded.
• What is the maximum allowed voltage transient for the SCT10N120?
  The maximum allowed voltage transient for the SCT10N120 is not explicitly stated in the datasheet. However, it is recommended to limit the voltage transient to less than 20% of the maximum rated voltage to prevent damage to the device.
