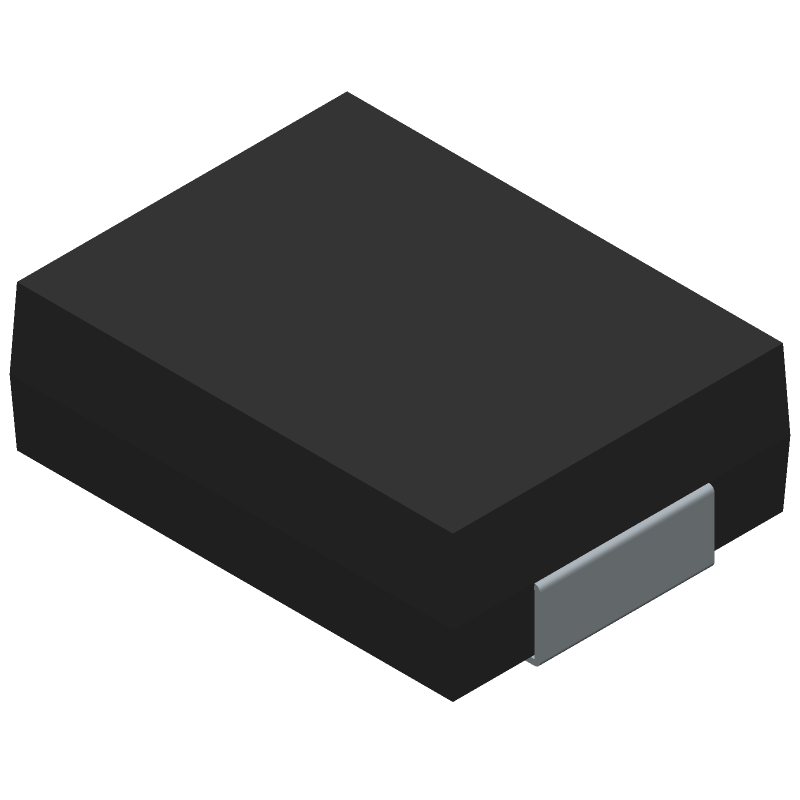

SM15T56CAY datasheet by STMicroelectronics

SM15T56CAY Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal thermal performance?
  A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1mm clearance around the device for airflow and heat dissipation.
• How do I ensure reliable operation in high-temperature environments?
  Implement a thermal management system, such as a heat sink or fan, to maintain a junction temperature below 150°C. Also, ensure proper PCB design and component selection to minimize thermal resistance.
• What are the recommended soldering conditions for this device?
  Use a reflow soldering process with a peak temperature of 260°C (500°F) for 20-30 seconds. Avoid wave soldering or hand soldering, as it may damage the device.
• How do I handle ESD protection for this device?
  Use ESD-sensitive handling procedures, such as wearing an ESD wrist strap or using an ESD mat. Ensure that the device is stored in an ESD-protective package or bag when not in use.
• What are the implications of operating the device beyond the recommended voltage range?
  Operating the device beyond the recommended voltage range (50V) may cause permanent damage, reduce lifespan, or affect performance. Ensure that the device operates within the specified voltage range to maintain reliability.
