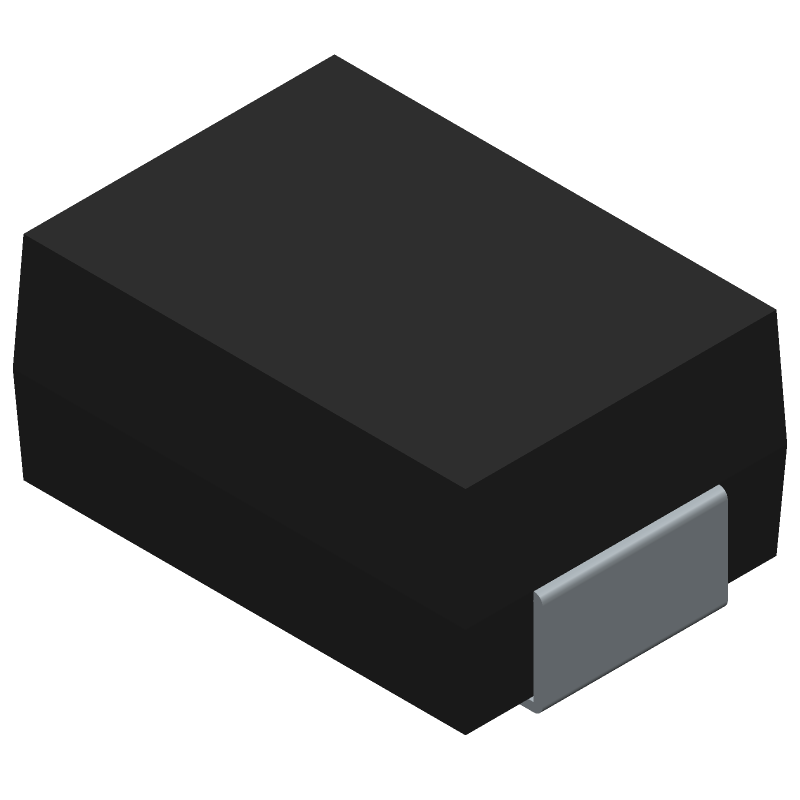

SMBJ48CA-13-F datasheet by Diodes Incorporated

SMBJ48CA-13-F Frequently Asked Questions (FAQs)

• What is the recommended footprint and land pattern for the SMBJ48CA-13-F?
  The recommended footprint and land pattern for the SMBJ48CA-13-F can be found in the Diodes Incorporated's application note AN-114, which provides guidelines for PCB layout and assembly.
• How do I ensure the SMBJ48CA-13-F is properly soldered and assembled?
  To ensure proper soldering and assembly, follow the recommended soldering profile and handling procedures outlined in the Diodes Incorporated's application note AN-115. Additionally, ensure the PCB is designed with a solder mask and solder resist to prevent solder bridging.
• What is the maximum operating temperature range for the SMBJ48CA-13-F?
  The SMBJ48CA-13-F has an operating temperature range of -40°C to 150°C, as specified in the datasheet. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within the specified temperature range.
• Can I use the SMBJ48CA-13-F in a high-reliability or automotive application?
  Yes, the SMBJ48CA-13-F is suitable for high-reliability and automotive applications. It meets the requirements of AEC-Q101, which ensures the device meets the stringent quality and reliability standards for automotive and high-reliability applications.
• How do I handle the SMBJ48CA-13-F during storage and shipping to prevent damage?
  To prevent damage, store the SMBJ48CA-13-F in its original packaging or an equivalent ESD-protective package. Avoid exposing the device to moisture, extreme temperatures, or physical stress during storage and shipping.
