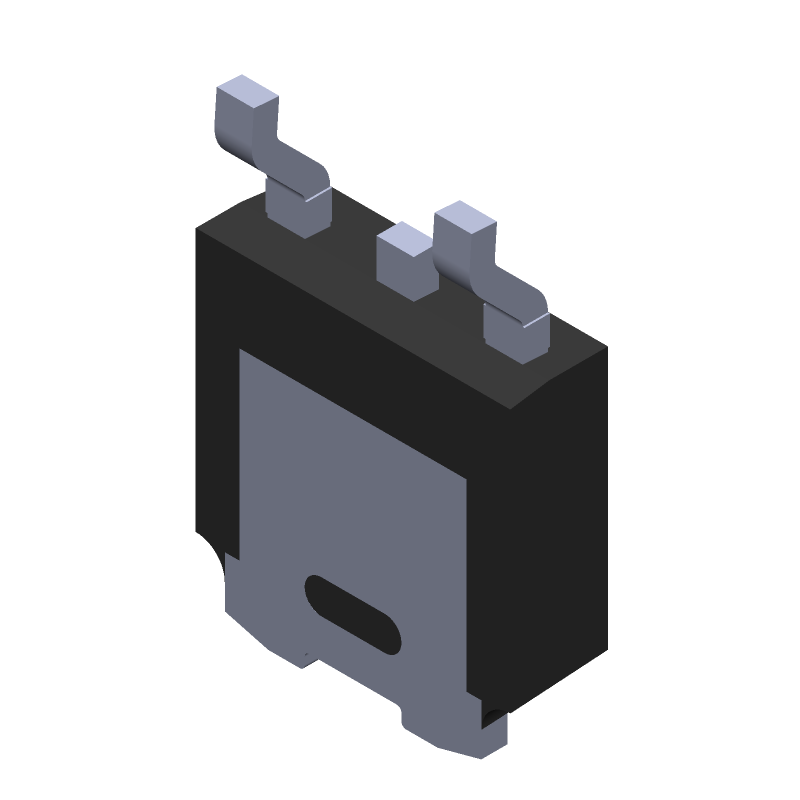

STD16N65M2 datasheet by STMicroelectronics

STD16N65M2 Frequently Asked Questions (FAQs)

• What is the maximum operating frequency of the STD16N65M2?
  The maximum operating frequency of the STD16N65M2 is 100 kHz, but it can be operated at higher frequencies with proper thermal management and layout considerations.
• How do I ensure the STD16N65M2 is properly thermally managed?
  To ensure proper thermal management, a heat sink with a thermal resistance of less than 10°C/W is recommended. Additionally, the device should be mounted on a PCB with a thermal via array to dissipate heat efficiently.
• What is the maximum safe operating area (SOA) of the STD16N65M2?
  The maximum safe operating area (SOA) of the STD16N65M2 is defined by the voltage and current ratings. The device can operate safely within the boundaries of Vds = 650V, Id = 16A, and Pd = 125W.
• How do I protect the STD16N65M2 from overvoltage and overcurrent?
  To protect the STD16N65M2 from overvoltage and overcurrent, a voltage clamp or a transient voltage suppressor (TVS) can be used. Additionally, a current sense resistor and a fuse can be used to detect and respond to overcurrent conditions.
• What is the recommended gate drive voltage for the STD16N65M2?
  The recommended gate drive voltage for the STD16N65M2 is between 10V and 15V, with a gate current of up to 2A. A gate driver with a high current capability and a low output impedance is recommended.
