The recommended land pattern for the VJ14MT0950KBA can be found in the Kyocera AVX Components' recommended land pattern document, which is available on their website. The document provides detailed information on the recommended pad layout, solder mask, and solder paste requirements.
To prevent damage, it is recommended to handle the VJ14MT0950KBA by the edges, avoiding touching the component's electrical contacts. It is also recommended to use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage.
The maximum operating temperature range for the VJ14MT0950KBA is -55°C to +125°C, as specified in the datasheet. However, it is recommended to derate the component's performance at extreme temperatures to ensure reliable operation.
Yes, the VJ14MT0950KBA is designed to withstand high-vibration environments. However, it is recommended to follow the manufacturer's guidelines for vibration testing and to ensure that the component is properly secured to the PCB to prevent mechanical stress.
To maintain the shelf life of the VJ14MT0950KBA, it is recommended to store the components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. The storage environment should be clean, dry, and free from contaminants.

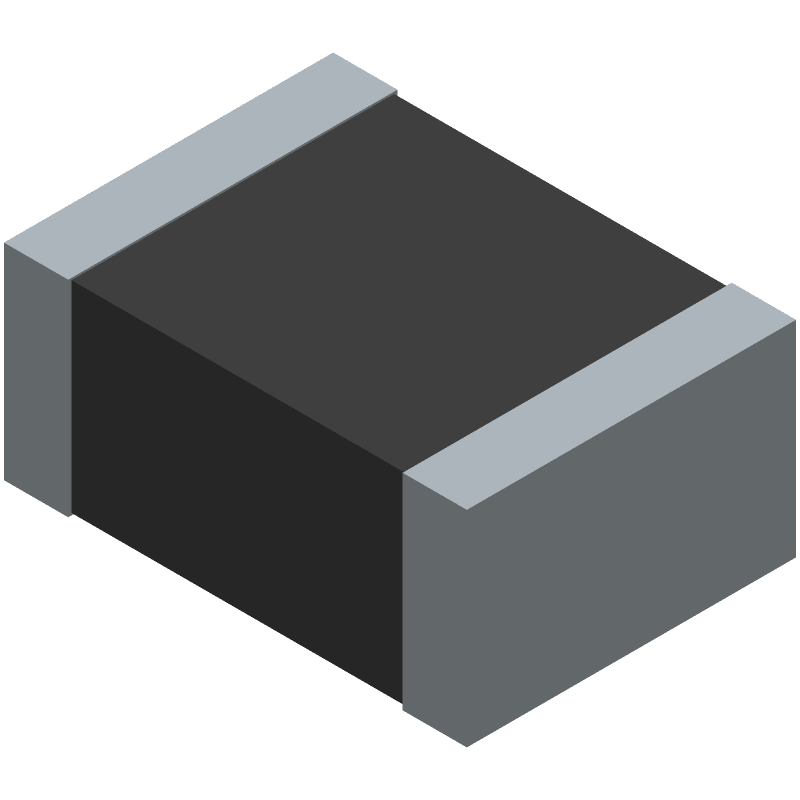

VJ14MT0950KBA datasheet
by Kyocera AVX Components
